PlanElec adds a new perspective: furniture, 3D views and lighting scenes

Furniture in your floor plan, 2D and 3D side by side, lighting scenes, a daylight study and a heatmap with guidance values: how PlanElec Pro makes your project easy to see and discuss.

Published on 12 September 2026 Updated on 6 November 2026 6 min

Where will the sofa go? How does a pendant light look above the dining table? How do the floors line up? In PlanElec Pro you view your project in space and discuss it more easily with clients and your team: furniture, matching 2D top views, an illustrative lighting preview, a daylight study and a heatmap of direct illuminance complete the 3D viewer. The 3D view is available to every user without activation; without WebGL you keep working in 2D with nothing lost.

An electrician and a homeowner discuss a pendant light location.

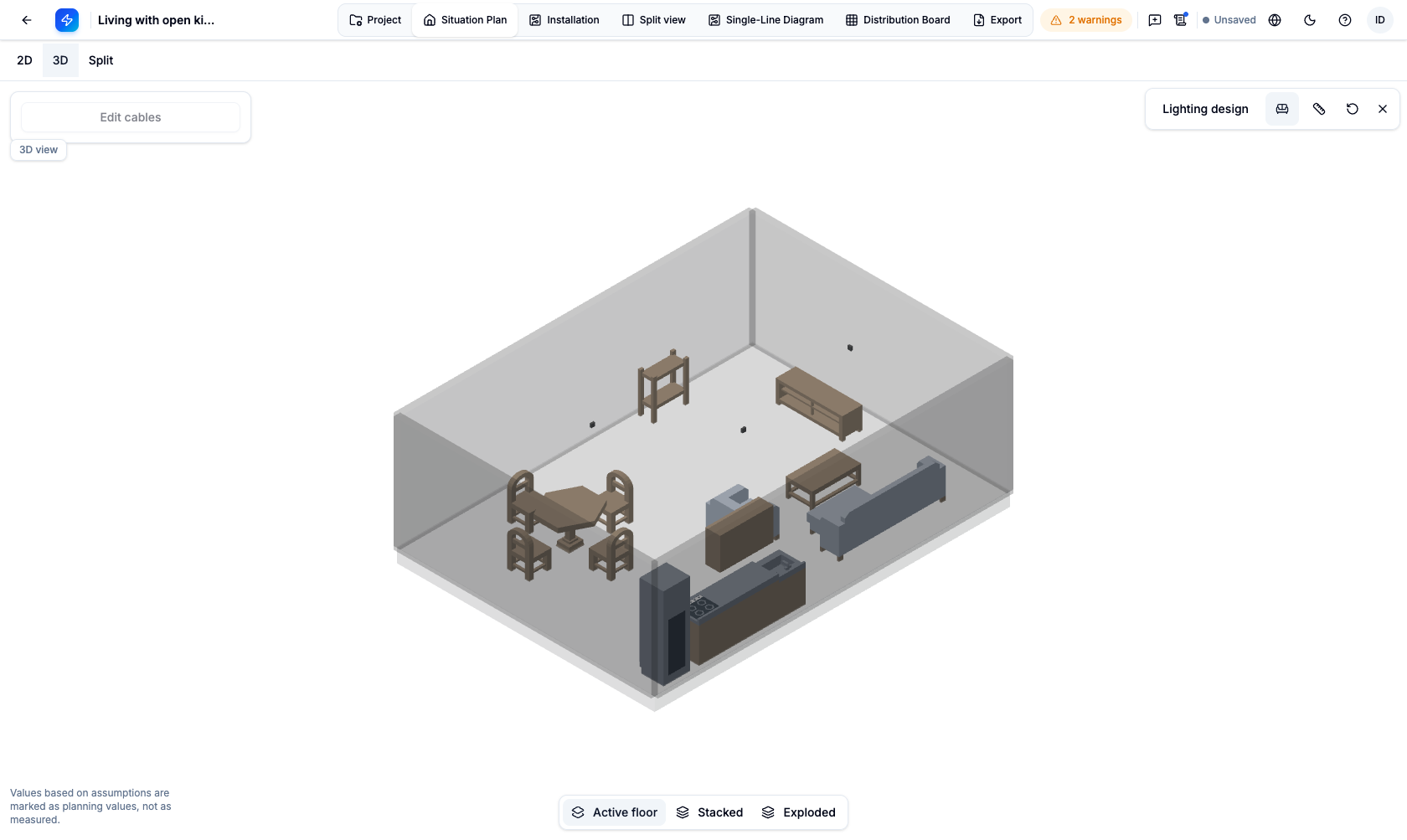

Furnished living and dining room with an open kitchen in the PlanElec 3D viewer
The furnished living and dining room is visible in the 3D viewer.
Open full-size image

Furniture gives the floor plan a sense of scale

A room becomes tangible once the sofa, table and kitchen units are in it. In Furniture mode you open the Furnishings & outdoors catalogue with 52 items in the categories Living, Dining and working, Sleeping and storage, Kitchen, Kitchen appliances, Sanitary and Outdoors. Each item has a top view for the 2D plan and a model for 3D; position, dimensions in centimetres and rotation are shared by both views.

This lets you check, for example, whether a socket outlet sits sensibly next to the sofa or a light fits the planned dining area. You place and rotate furniture, adjust its dimensions and hide it when needed. Whether it appears in the exported situation plan is up to you: the export has its own switch, Include furnishings and outdoor objects. The catalogue is a selection of typical furnishings, not a manufacturer catalogue; many appliances appear in 3D as simplified shapes.

One project, two perspectives

The view switcher moves between 2D, 3D and 2D + 3D. The split view appears once the studio workspace is at least 1600 pixels wide and works well for coordination: the position in the plan on the left, its spatial effect on the right. Selection and project state are shared by both views; you do not need a second model.

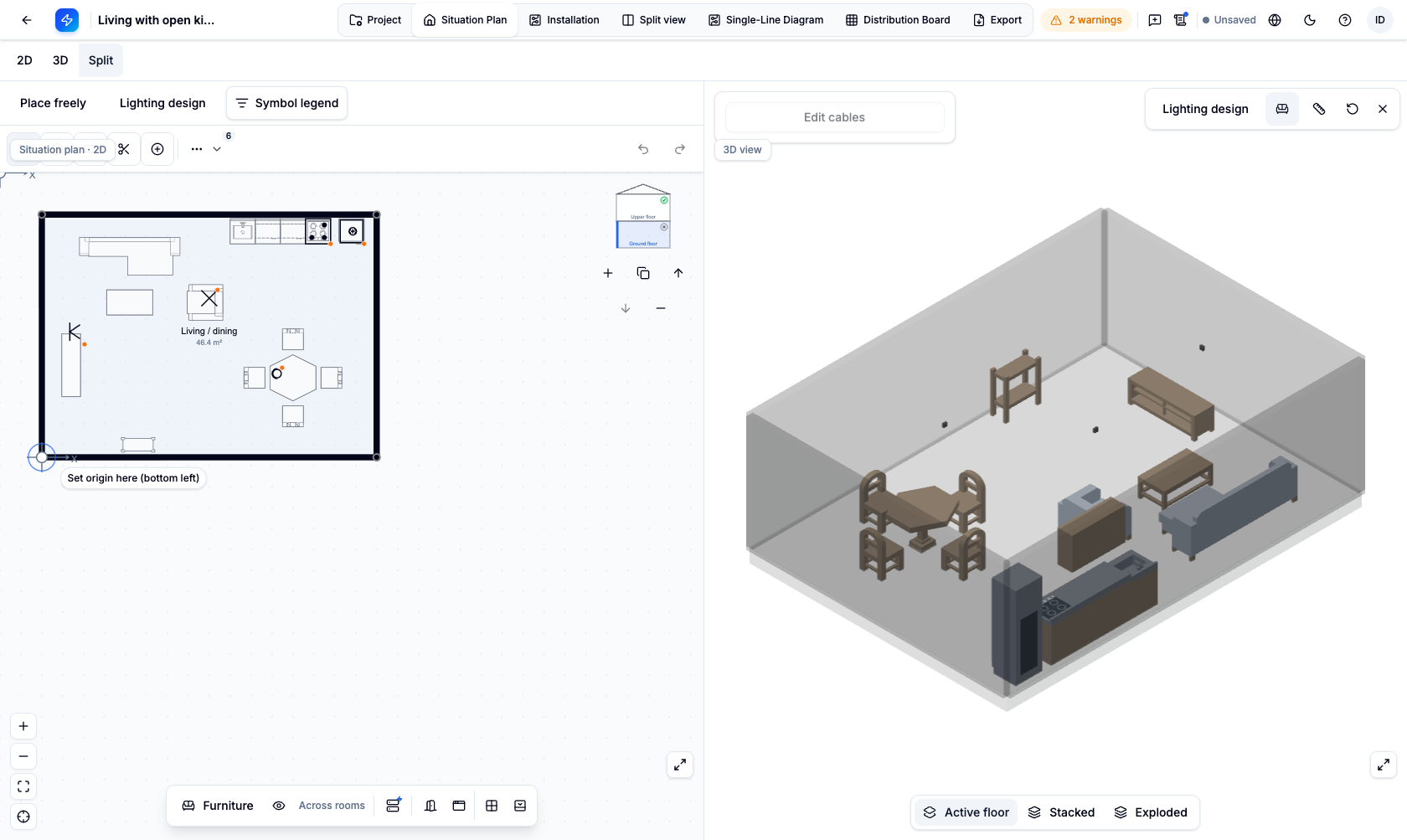

The same furnished room shown as a 2D floor plan and a 3D view side by side
The split view shows the floor plan on the left and the 3D viewer on the right.
Open full-size image

Placement is more flexible too: hold Shift to turn off snapping temporarily. On tablets and phones, the Place freely switch does the same. For furniture, it also lets you set the rotation without angle steps. In Furniture and Lighting mode, 3D opens with the Wall cutaway so you can look into the rooms.

Try out lighting scenes

In Lighting mode, PlanElec opens the 3D view with the Lighting planning and Lighting study panels. You place lights one by one or as a Spot Grid. In the Lighting planning panel you set lumens, colour temperature, beam angle, tilt, mounting height and group per room; groups let you control the dining and living areas together, for example.

The Everyday and Evening scenes let you compare different moods. Ambient brightness, lights switched on and dimming change how the room feels; optional Light cones make the aim visible. Export scene as image saves a scene as a PNG to share in a meeting.

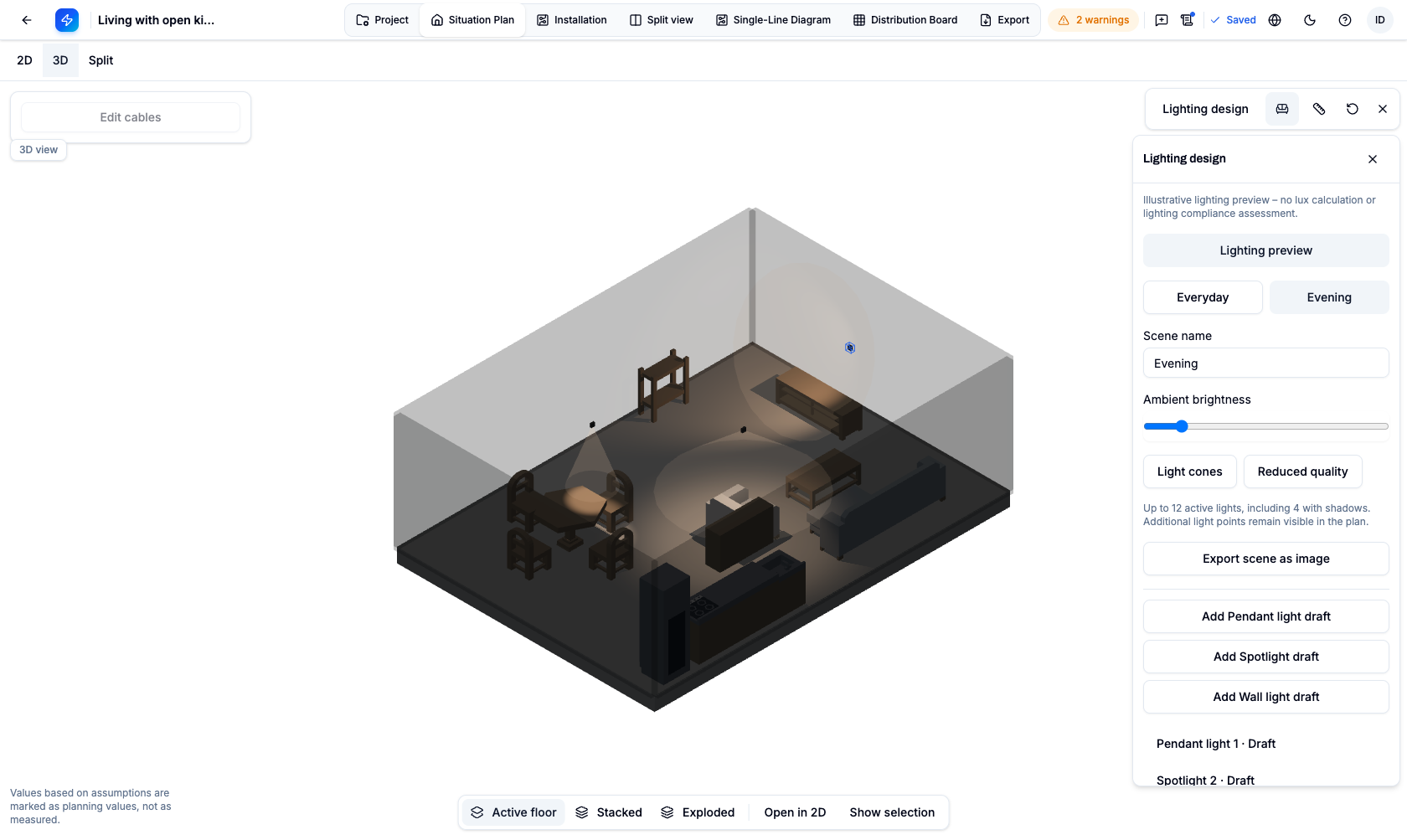

Exported evening scene with warm light, shadows and visible light cones
The evening scene shows warm light cones and the preview controls.
Open full-size image

The lighting preview shows mood and direction; it does not calculate lux values. A newly placed light starts as a draft. Only Link to circuit and Adopt into electrical plan make it part of the electrical design; PlanElec does not derive power or wiring from the preview.

How does daylight fall into the room?

The Daylight study · Brussels location section in the Lighting study panel sets up sunlight with shadows in 3D. You set the project's North orientation once, choose a date and time, and watch light and shadow move through the rooms.

The sun position is calculated for a fixed location in Brussels; there is no project-specific location. The study does not calculate daylight values in lux.

What does the illuminance heatmap show?

The Illuminance heatmap calculates the direct illuminance of your lights per room on a working plane at 0.8 m and colours the 2D floor plan. The Results by room table gives the mean Ē, the minimum Emin and the uniformity; a traffic light compares the mean with a stored guidance value: Reached, Just below or Too low.

What you getWhat is not included
Direct component of artificial light at 0.8 m per roomReflections, light from neighbouring rooms, daylight
Mean, minimum, uniformityManufacturer photometry (IES/LDT)
Traffic light against guidance values, e.g. kitchen 300–500 lxStandard requirements or a lighting compliance report

The heatmap supports planning and client conversations; it is not a standards-based lighting calculation. If you need a verifiable lighting calculation, use lighting design software with the manufacturer's photometric data; PlanElec gives you room geometry, light positions and mounting heights as the starting point.

See floors and dimensions in context

With Active floor, Stacked and Exploded, the viewer shows only the current floor, the whole building or the floors pulled apart. This lets you review layout and furnishings across several floors together.

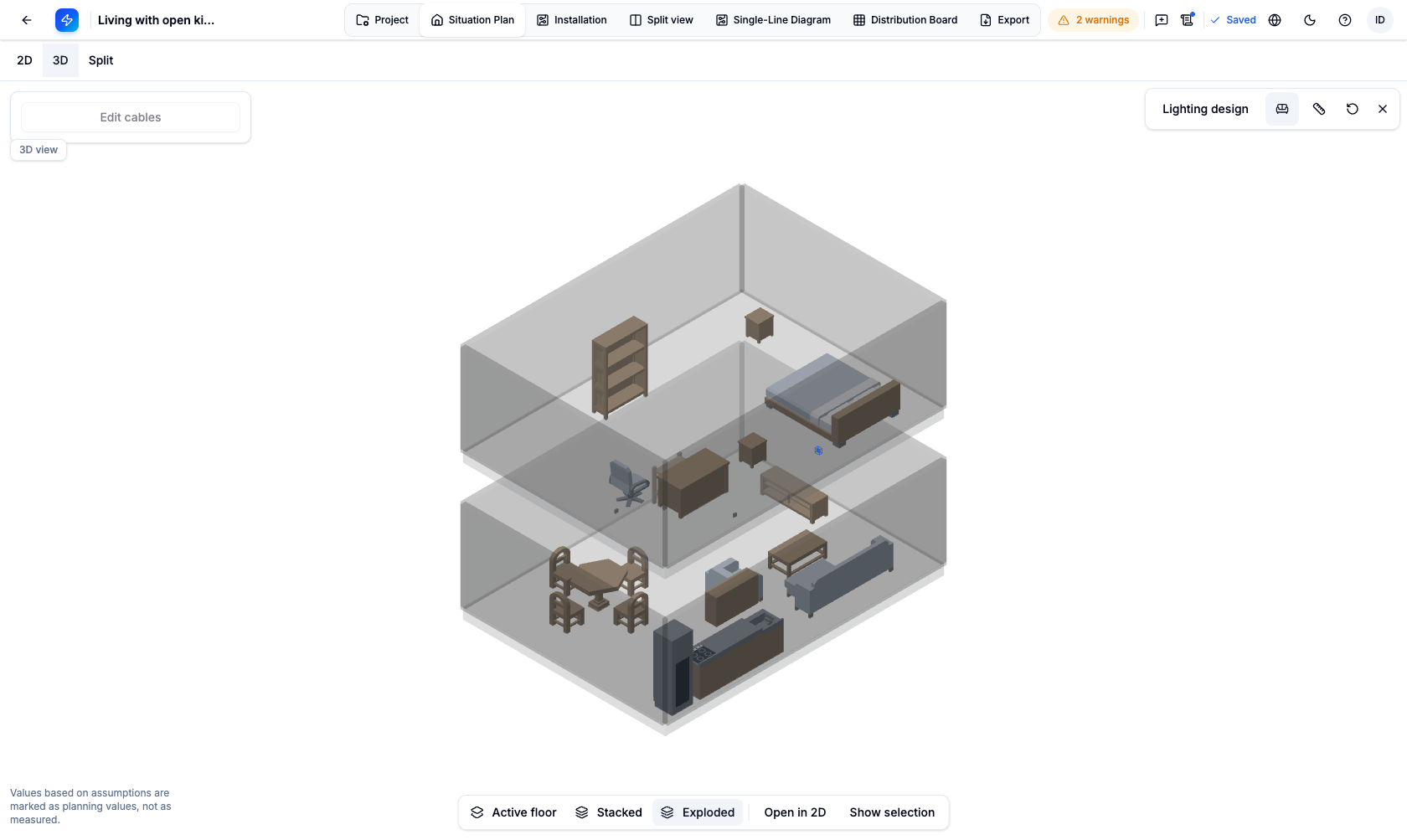

Two furnished storeys in the exploded 3D view
The exploded view shows both furnished storeys.
Open full-size image

Optional dimensions show room measurements and ceiling height. Unconfirmed default heights stay marked as assumptions, so you never mistake a planning value for a measured one.

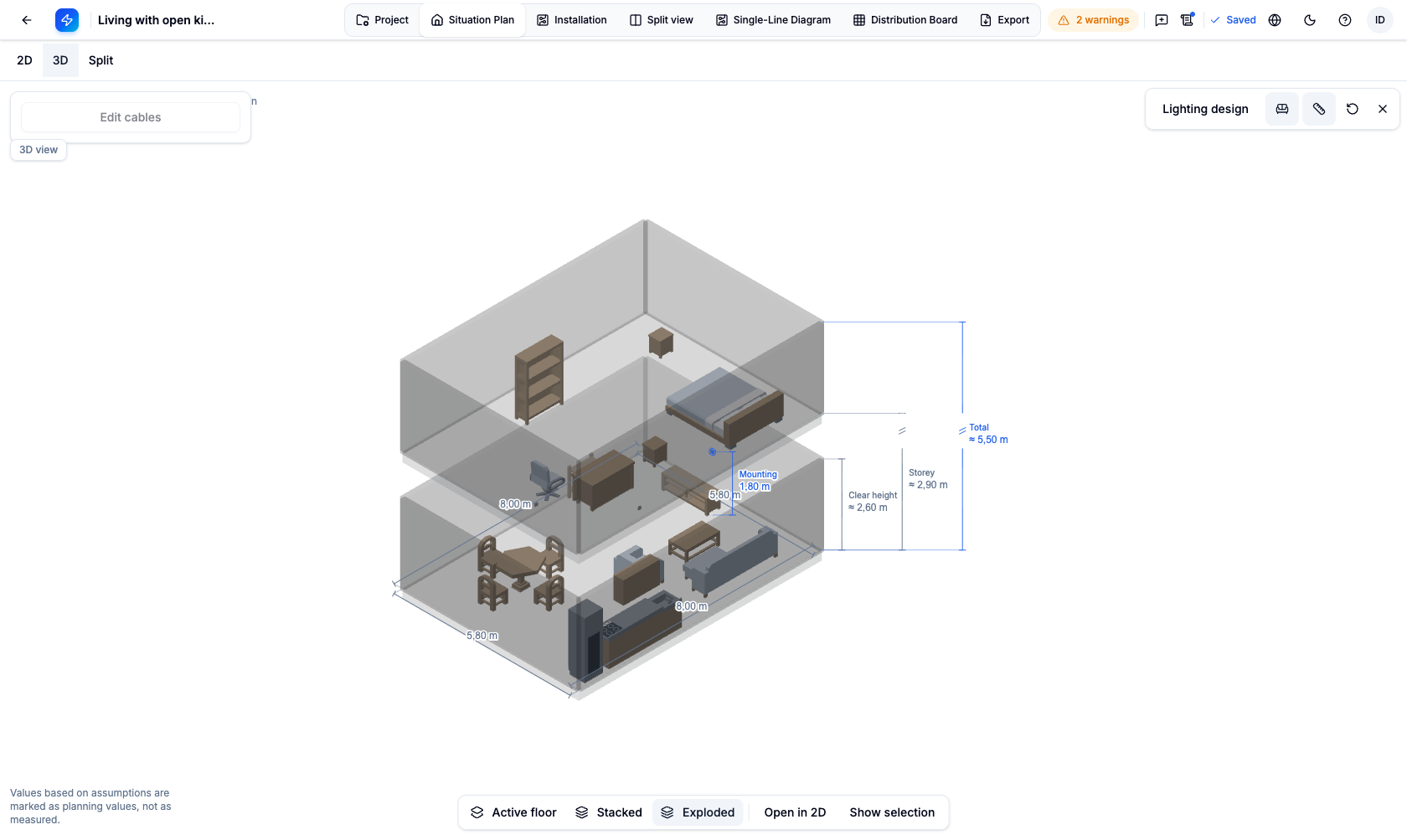

3D view with room dimensions and a height labelled as an assumption
Dimension lines show the room measurements; the unconfirmed height remains marked as an assumption.
Open full-size image

Frequently asked questions about 3D, furniture and lighting

Do I need to activate the 3D view?

No. In PlanElec Pro the 3D view is available to every user without a feature switch. You need a browser with WebGL; without it, PlanElec shows a notice and you continue in the 2D floor plan with the same project. With the Viewer role you see 3D and the lighting study but cannot change values.

Does the lighting study replace a lighting calculation?

No. The lighting preview, daylight study and heatmap are planning and discussion aids. The heatmap only calculates the direct component of your lights against guidance values; a lighting compliance report is done in lighting design software.

Does the furniture appear on the situation plan?

If you want it to. When exporting, Include furnishings and outdoor objects switches furniture on the situation plan on or off.

Is 3D available in PlanElec Sketch?

No. If you only need the single-line diagram and situation plan, draw them for free in PlanElec Sketch in your browser and export them as a PDF. 3D, furniture and the lighting study are part of PlanElec Pro.

What you gain

Furniture and lighting ideas live in the same project as the electrical design. You discuss socket outlets, switches and lights where furniture and people will actually be, rather than on an abstract line in the plan.

The captures show a prepared example project. Open your project, add furniture and switch to 2D + 3D to see the floor plan and spatial view together. Every step, navigation and limit is covered in the guide 3D view and lighting study; the full scope is on the feature overview.
